The Technology Behind Modern Power Stations: How They Work

A modern power station is a rechargeable battery system with a built-in inverter and smart charge controls. It stores electricity—much like a giant, safe power bank—and delivers it as familiar AC and DC power for everyday devices.

Unlike fuel generators, it runs quietly, produces no exhaust, and can be recharged from a wall outlet, a vehicle, or solar panels. Think of it as a portable energy hub you can use at home, on the road, or during an outage.

What’s Inside a Modern Power Station

At a high level, four subsystems work together:

• Battery pack (measured in watt-hours, Wh): Modern units use lithium-ion chemistries—often NMC or LiFePO₄ (LFP). NMC offers higher energy density for compact size; LFP typically provides longer cycle life and better thermal stability. Capacity in Wh tells you how much energy is stored.

• Inverter (measured in watts, W): Converts the battery’s DC into household AC. Two ratings matter: continuous output (what it can deliver steadily) and surge (brief extra power for start-up spikes from devices like fridges or power tools). A quality inverter outputs a pure sine wave, which sensitive electronics prefer.

• Battery management system (BMS): The safety brain. It monitors temperature, voltage, current, and individual cell balance to prevent over-charge, over-discharge, and short circuits.

• Charge and I/O modules: MPPT solar charge controllers for efficient panel input; high-speed AC charging; car/DC charging. On the output side, look for a practical mix of AC sockets, USB-A, USB-C PD for laptops, and 12V DC ports. The port mix determines real-world convenience.

How It Works (Energy Flow in Plain English)

Charging is straightforward: wall/AC power, a vehicle port, or solar panels feed into the charging modules (MPPT for solar), which replenish the battery safely. Using that energy is just as simple: DC from the battery either goes through the inverter to power AC devices (TVs, routers, mini-fridges) or directly to DC ports for higher efficiency (phones, cameras, some coolers).

A quick planning rule helps estimate runtime:

Runtime (hours) ≈ (Battery Wh × 0.85) ÷ Device W

The 0.85 factor accounts for conversion losses and real-world inefficiencies. Example: a 512 Wh unit powering a 50 W laptop should last roughly (512×0.85)/50 ≈ 8.7 hours. For appliances with compressors or motors, remember surge. A fridge that averages 60 W may briefly pull 300–600 W at start-up. Your inverter must have enough surge headroom even if average draw is modest.

Where a Modern Power Station Fits in Daily Life

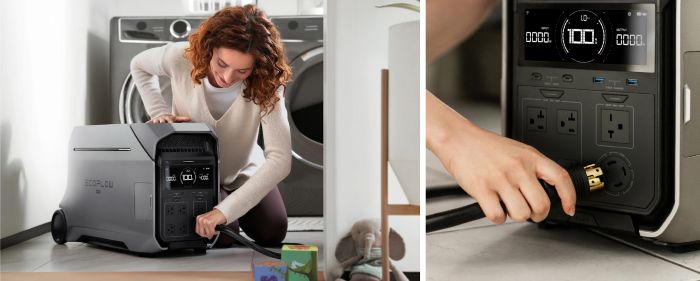

• Home backup: Keep the essentials running during outages—Wi-Fi router, phones, LED lights, a CPAP machine, and even a compact fridge for many hours. It’s quiet and safe to use indoors, which is helpful in apartments or condos where fuel generators are impractical or against building rules.

• Remote work and mobile studios: Laptops, monitors, cameras, and a 5G hotspot can run for a full workday from a mid-sized unit. Creators can charge drones and lights on location without hunting for outlets.

• Travel and outdoors: At a campsite or cabin, recharge devices, run a portable cooler, and light the area without noise. Pair with solar panels for multi-day trips.

• Light professional use: Contractors can top up cordless tool batteries on a jobsite while staying within quiet-hours restrictions. Market vendors and pop-ups can power point-of-sale devices and lighting without fumes.

Size the Right One in Three Steps (No Spreadsheet Needed)

Step 1 — List essentials for a typical day.

Write down the devices you must run and for how long. Multiply device power (W) by hours to get daily energy (Wh). Typical ballpark numbers:

• Wi-Fi router: 10–15 W
• Smartphone charging: ~5–10 W while charging
• Laptop: 50–100 W (varies widely)
• LED light: 8–12 W per bulb
• Portable fan: 20–40 W
• Compact fridge: 60–100 W average (spikes higher on start)

Step 2 — Add 15% overhead.

Conversion losses, cold weather, cable runs, and inverter overhead all add up. Multiply your total by ~1.15 to avoid undersizing.

Step 3 — Check outputs and surge.

Ensure continuous AC output in watts exceeds your simultaneous draw, and surge rating covers the highest start-up device. For DC/USB-C laptops, confirm USB-C PD wattage (e.g., 60 W or 100 W) meets your laptop’s needs.

Example: Router (12 W × 24 h = 288 Wh), two LED lights (10 W × 5 h × 2 = 100 Wh), phone charging (10 Wh), and a laptop (60 W × 6 h = 360 Wh). Total ≈ 758 Wh. With overhead: ~872 Wh. A 1,000 Wh class model gives comfortable margin, assuming the inverter can handle the laptop and any brief spikes.

Charging and Re-Charging Strategies

• Fast AC charging: If your grid is reliable, fast AC charging is the easiest way to “reset” after an outage or prep for a trip. Some units replenish from 0–80% in about an hour, which is practical between events or during a short power restoration window.
• Vehicle charging: 12V ports often provide ~100–120 W; great for topping up while driving, but slow for large batteries. For frequent vehicle charging, look for DC-DC options that raise input power safely.
• Solar input: MPPT controllers maximize panel harvest by tracking voltage/current sweet spots. Respect the input limits (voltage, current, wattage). In partial shade or winter sun, tilting and placement matter more than people expect. Series connections raise voltage for longer cable runs; parallel keeps voltage lower but increases current—stay within the spec either way.
• Duty-cycle planning: Weekdays at home might mean the station floats at a comfortable state of charge, topping up phones and routers during brownouts. Weekends at the campsite could shift to a solar-dominant routine. A simple habit—plug in and top up after every use—keeps you ready.

Safety and Compliance (Indoor-Use Reality)

• Placement and ventilation: These devices don’t emit fumes, but they do generate heat during heavy charge/discharge. Keep vents clear, avoid soft surfaces that block airflow, and route cables to prevent trips.
• Temperature awareness: Cold reduces available capacity and charging speed; extreme heat shortens battery life. Store between uses in a temperate spot, and if you operate below freezing, let the unit warm slightly before charging (some models include battery preheating).
• Cables and protection: Use properly rated extension cords and avoid daisy-chaining strips. Where moisture is possible, GFCI-protected outlets add a layer of safety. Surge protectors can help with sensitive electronics, but don’t treat them as a substitute for adequate inverter sizing.
• Certifications: Look for recognized safety marks (e.g., UL/ETL/CE) and check that the product manual includes clear guidance on ventilation, charging ranges, and storage.

Modern Power Station vs. Gas Generator (30-Second Reality Check)

• Noise and emissions: Battery units are nearly silent and produce zero exhaust—safe for indoor use. Gas generators must run outside, are loud, and require careful CO safety practices.
• Maintenance and storage: Generators need fuel, oil changes, and regular starts to stay healthy. Battery systems need only periodic charging and sensible storage.
• Runtime approach: A generator can run indefinitely with fuel; a battery system excels at clean, short-to-medium duty cycles. For extended blackouts or high-draw tools, a hybrid approach (battery for essentials, generator for recharging or heavy loads) can make sense.

The Near Future

Innovation is accelerating on three fronts:

• Energy density and cycle life: New chemistries and pack designs are pushing more watt hours (Wh) into smaller footprints while maintaining robust cycle counts.
• Faster, smarter charging: Bidirectional DC, better thermal management, and adaptive charging profiles are shortening recharge times and extending battery health.
• Ecosystem integration: Expect tighter pairing with rooftop or portable solar, vehicle power, and even home circuits. App-based energy management will shift these devices from “backup only” to everyday optimization tools that shave peaks and add resilience.

FAQs

What’s the difference between watts (W) and watt-hours (Wh)?

Watts describe power—the rate of energy use at a moment. Watt-hours describe energy—how much work is available over time. A 100 W device running for 5 hours uses 500 Wh.

Can a modern power station run a refrigerator?

Often yes, if the inverter’s surge rating covers compressor start-up and the battery capacity is sized for your runtime goal. A small fridge that averages ~60–100 W could run many hours from a 1,000 Wh class unit, but actual results depend on ambient temperature and door openings.

Is it safe to use indoors?

Yes—no combustion, no exhaust. Follow the manual: keep vents clear, manage cables, and respect temperature limits.

How do I handle surge power from tools or appliances?

Check both continuous and surge ratings. If a device lists a high starting current or you notice lights flicker when it starts, you likely need more inverter headroom.

How long will the battery last over its lifetime?

Cycle life varies by chemistry and how you use it. Modern power LiFePO₄ packs often retain a high percentage of capacity after thousands of cycles. Heat, deep discharges, and constant 100% storage can shorten lifespan; moderate usage and temperate storage extend it.
